AMetric_sez_CA

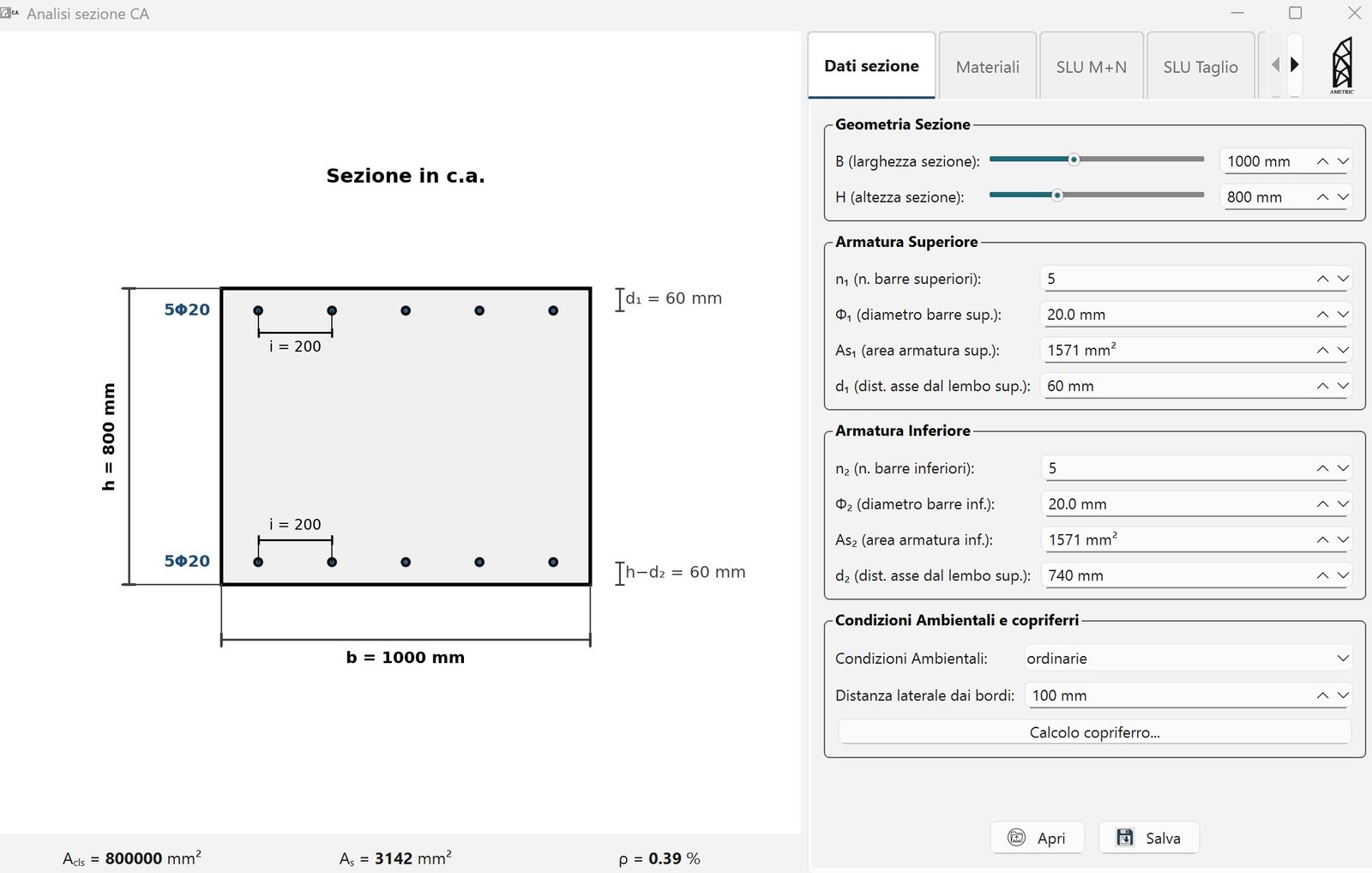

Reinforced-concrete section analysis & checksAMetric_sez_CA verifies rectangular reinforced-concrete sections to Italian NTC 2018 and the 2019 Circular: ultimate limit state (ULS) resistance, shear checks and serviceability (SLS) checks on stresses and crack width. Geometry, reinforcement and internal forces are defined in a few steps, and every check comes with its domain plot, with the N-M action points overlaid on the resistance boundary.
Features

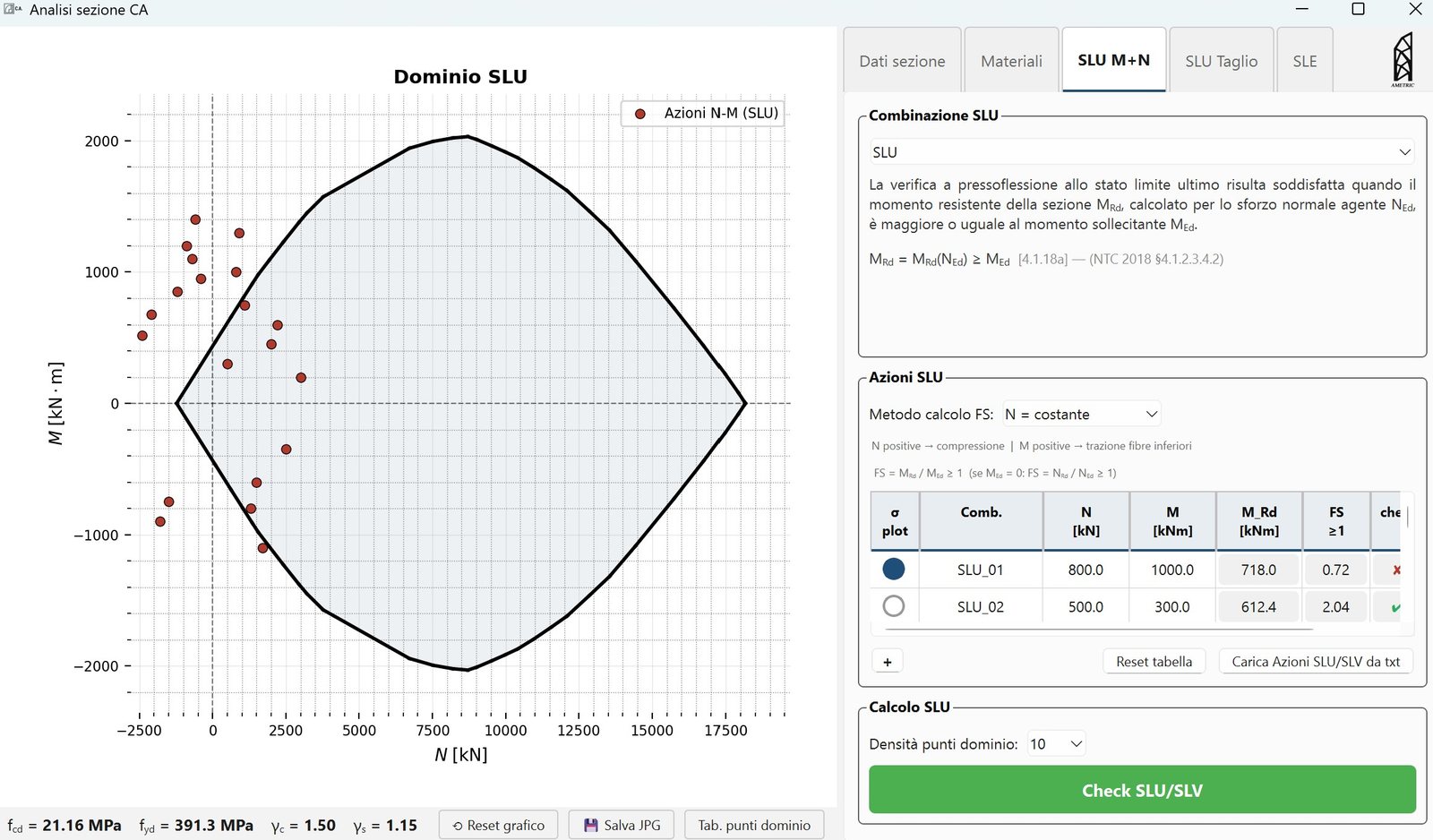

- Combined axial force–bending ULS verification

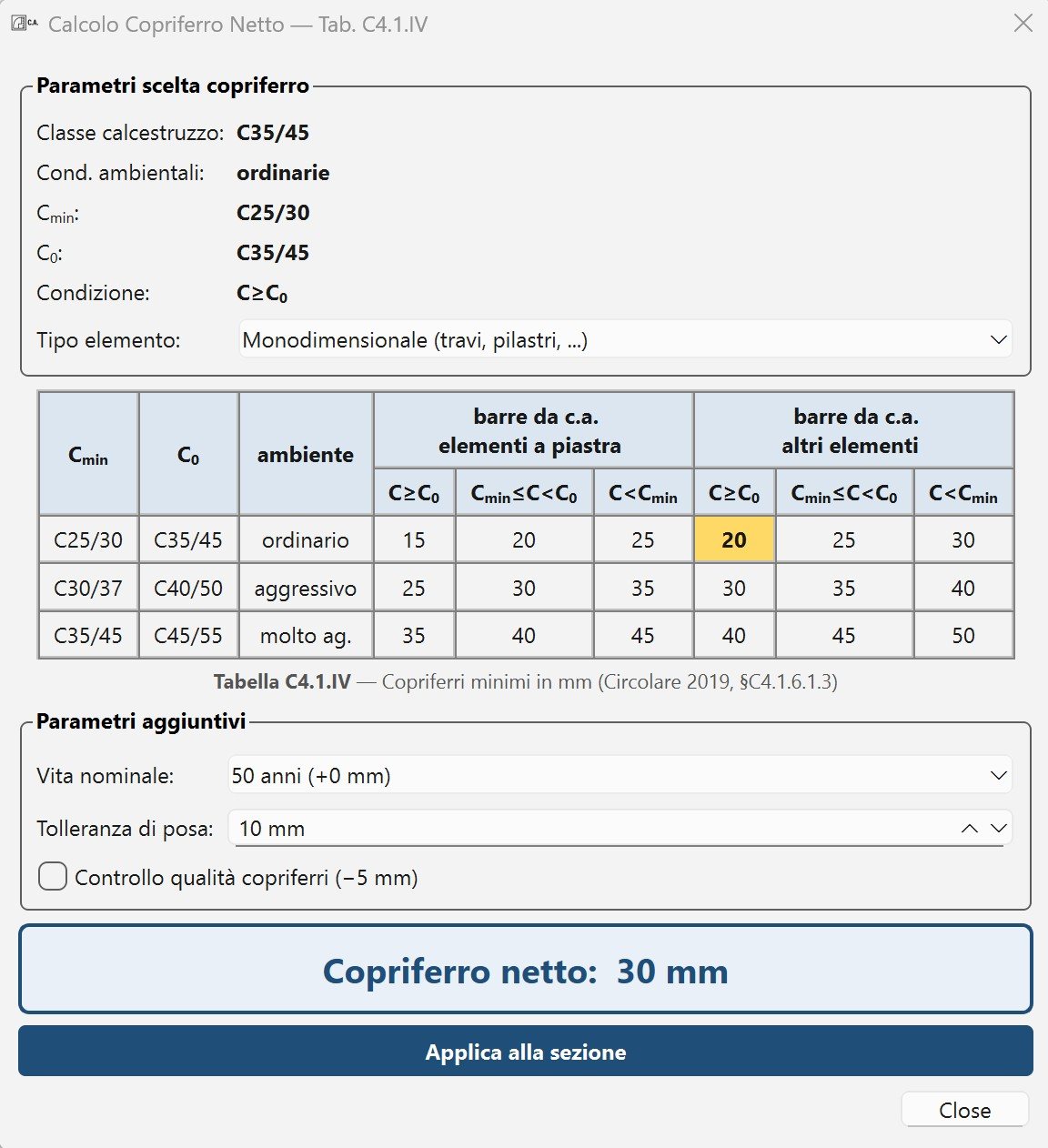

- Automatic minimum cover calculation based on environmental conditions
- ULS resistance domains plotting
- SLV resistance domains in the substantially elastic range

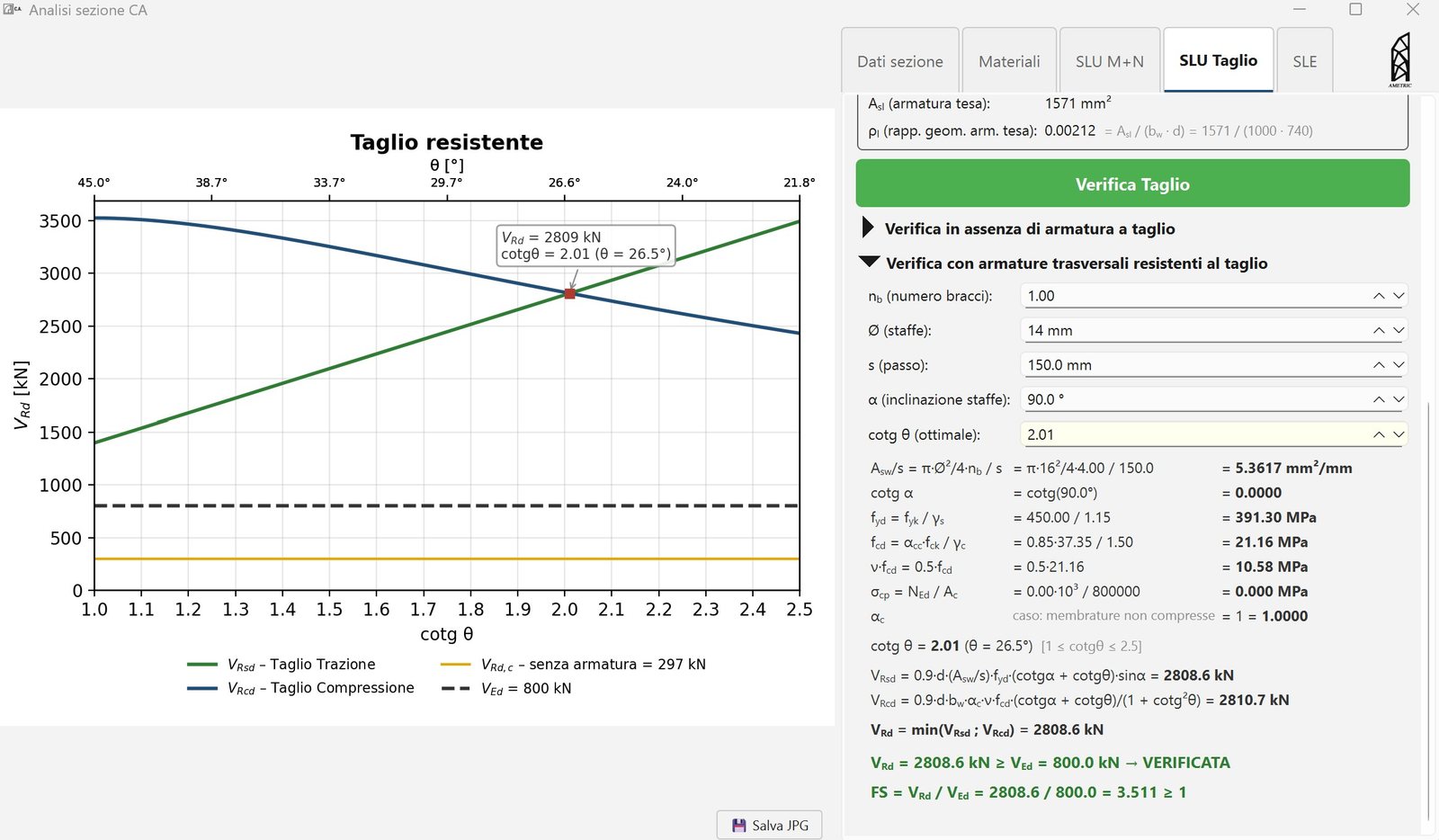

- Shear checks with automatic optimal strut angle θ

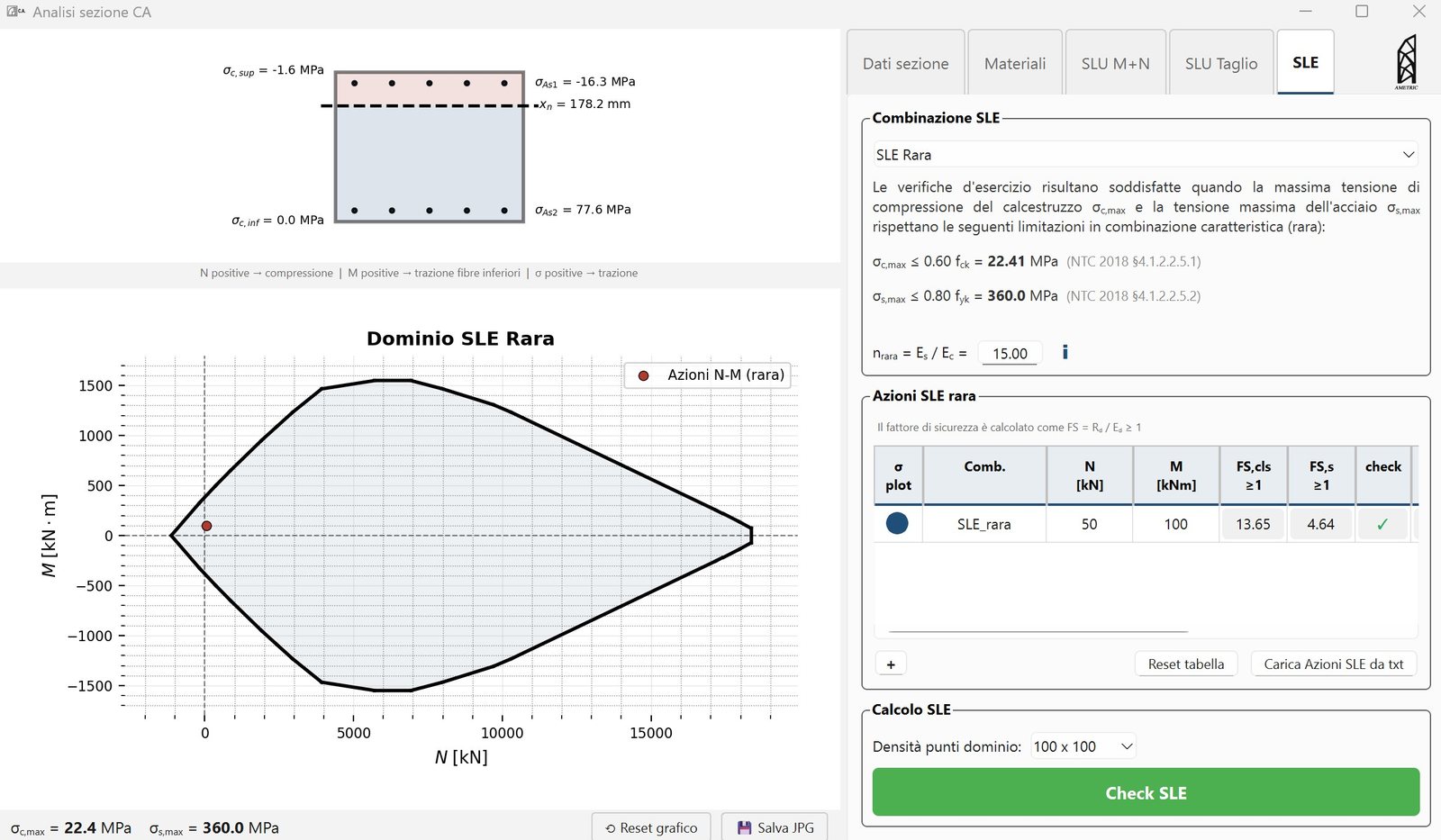

- Serviceability stress checks for concrete and steel
- Crack-width verification
- Stress and cracking domains under SLE service conditions
- Automatic import of N-M internal forces
- Project saved to .sez files, reopened with a double click
